Product Brief
The manipulator equipped with a planetary reducer enables more cost-effective underwater operations, with an end-effector load capacity of over 10 kg. It is suitable for heavy-duty underwater tasks, providing a cost-effective and highly reliable heavy-duty operation solution for fields such as marine engineering, underwater rescue, and heavy equipment maintenance. It helps users achieve professional-grade underwater operation capabilities at a lower cost.
Core Features
Heavy-Duty & High-Output Performance: Adopting a high-torque planetary reducer module and a reinforced alloy frame, it achieves an end-effector load capacity of over 10 kg. The multi-degree-of-freedom joint design enables large-range flexible movements, perfectly adapting to heavy-duty underwater tasks such as salvage, welding, cutting and cleaning. It maintains stable control even when handling irregular heavy objects.
Replaceable Multifunctional End-Effectors: Integrated with standardized quick-connect interfaces, it supports minute-level replacement of more than 10 types of professional tools including obstacle-breaking hammers, hydraulic shears and heavy-duty grippers. On-site rapid deployment can be completed without special tools, significantly improving operational efficiency in scenarios such as underwater engineering, emergency rescue and equipment maintenance.
Cost-Effectiveness Advantage: Compared with harmonic reducer solutions of the same specification, this product reduces costs by more than 30% while maintaining equivalent load performance. It provides reliable heavy-duty operational capabilities for budget-sensitive projects, achieving an optimal balance between performance and cost.
High Pressure Resistance & Corrosion Protection Design: The main structure is made of 316L stainless steel and marine-grade aluminum alloy, with a standard pressure resistance of 300 meters, and a full-ocean-depth version is customizable. The surface undergoes special anti-corrosion treatment and pressure compensation design, ensuring long-term stable operation in harsh environments such as high pressure, high salinity and low temperature.

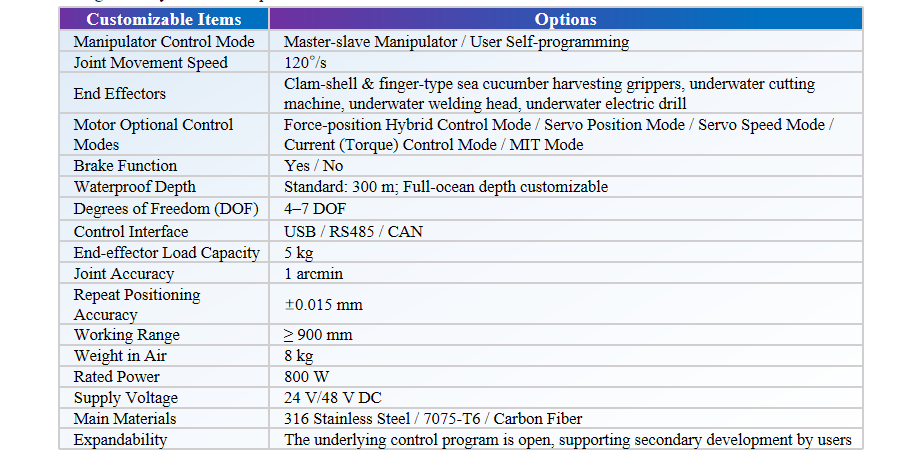

Specifications
