Product Brief
This product detects the phase difference of laser to measure the distance to the target, achieving a millimeter-level resolution. Meanwhile, it features strong temperature adaptability and low drift. The high signal-to-noise ratio minimizes the impact of target properties such as color, surface roughness and material on detection results. Compact in size, this product is highly user-friendly.
For highly reflective surfaces (e.g., mirror-finish painted surfaces, smooth stainless steel or aluminum plates), auxiliary diffuse reflection materials must be applied. White paper is suitable for short-distance measurements, while 3M diffuse reflection materials are recommended for long-distance scenarios.
When multiple modules are in operation, the interval between laser beams should be more than 15 cm (a minimum of 10 cm is required); otherwise, mutual laser interference will occur.

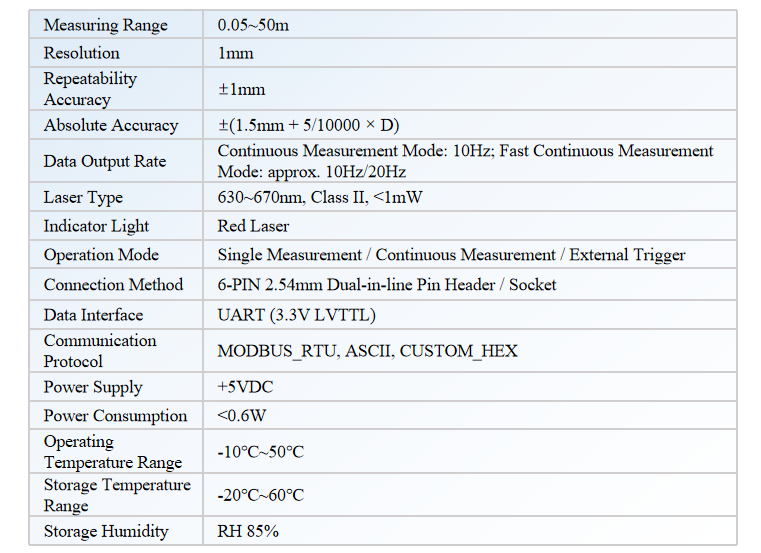

Specifications
